Q. How do you fix electromigration?
They are:
- Widen the wire to reduce current density.
- Reduce the frequency.
- Lower the supply voltage.
- Keep the wire length short.
- Reduce buffer size in clock lines.
Q. What is EM failure?
It is significantly affected by current density and temperature. With accumulation and depletion of atoms, EM results in a dominant failure mechanism in microelectronics that leads to the appearance of hillocks and voids, which can cause short circuits and open circuits, respectively [1-6].
Table of Contents
- Q. How do you fix electromigration?
- Q. What is EM failure?
- Q. How can electromigration be prevented?
- Q. What is signal em?
- Q. What is IR drop?
- Q. What is electromigration in physical design?
- Q. Where does electromigration occur in an electronic circuit?
- Q. What is the movement of atoms in electromigration?
- Q. Do you need a lot of electrons for electromigration?
- Q. Is there a future for electromigration in microelectronics?
Q. How can electromigration be prevented?
The existing solution to avoid electromigration is to ensure that wires with potential large current densities have proper widths to hold them. Due to chemical-mechanical polishing (CMP) effects which reduces the thickness of wires, a thinner wire may be able to hold a larger current density than a wider one.
Q. What is signal em?
Signal EM — It is performed net by net ,simulating the charging and discharging for all possible paths to determine the worst case average and rms current for each wire segment. Once currents are determined ,current density is computed. Power EM — EM effects produced on power nets is noted as power EM.

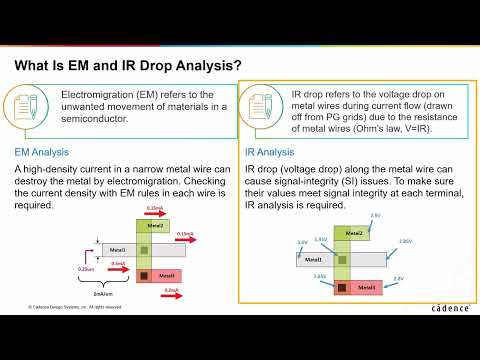

Q. What is IR drop?
IR drop is the electrical potential difference between the two ends of a conducting phase during a current flow. This voltage drop across any resistance is the product of current (I) passing through resistance and resistance value (R). IR drop is also known as ohmic potential drop in electrochemistry.
Q. What is electromigration in physical design?
Definition. Electromigration is the movement of atoms based on the flow of current through a material. If the current density is high enough, the heat dissipated within the material will repeatedly break atoms from the structure and move them. This will create both ‘vacancies’ and ‘deposits’.
Q. Where does electromigration occur in an electronic circuit?
In addition to the solid-state electromigration process, so-called electrolytic electromigration can occur in electronic circuits, often on printed circuit boards (PCBs). Its mechanisms are quite different compared to solid-state electromigration: recall that solid-state electromigration is the movement of metal within a conductive
Q. What is the movement of atoms in electromigration?
What is Electromigration? Electromigration is the movement of atoms based on the flow of current through a material. If the current density is high enough, the heat dissipated within the material will repeatedly break atoms from the structure and move them.
Q. Do you need a lot of electrons for electromigration?
For electromigration we need a lot of electrons, and also we need electron scattering Electromigration does not occur in semiconductors, but may in some semiconductor materials if they are so heavily doped that they exhibit metallic conduction. a) Direct Force : Direct action of the external field on the charge of the migrating ion.
Q. Is there a future for electromigration in microelectronics?
Having shown in Chap. 1 that the future development of microelectronics will lead to more and more electromigration problems, let us now investigate in detail the actual low-level migration processes.
