Q. How do you get different colors in MATLAB?
Direct link to this answer You can specify colors using a vector. Usually RGB colors have values from 0 to 255. You can use those numbers and divide the vector by 255 to use within MATLAB. You can put in the RGB triplet (as a vector) directly into the plot command.

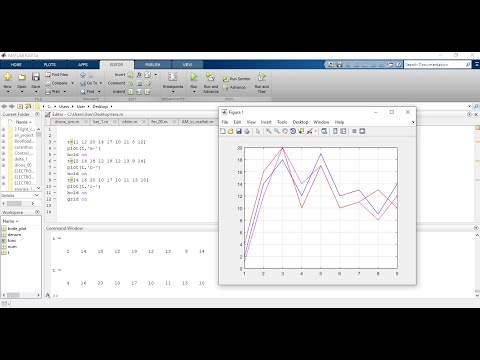

Q. How do you plot different lines in MATLAB?
Plot Multiple Lines By default, MATLAB clears the figure before each plotting command. Use the figure command to open a new figure window. You can plot multiple lines using the hold on command. Until you use hold off or close the window, all plots appear in the current figure window.
Q. How do you color a plot in MATLAB?
MATLAB assigns colors to plot objects (such as Line , Scatter , and Bar objects) by cycling through the colors listed in the ColorOrder property of the axes. The ColorOrder property contains an array of RGB triplets, where each RGB triplet defines a color. The default ColorOrder array contains seven colors.
Q. How do you plot a blue line in Matlab?
The blue line is plotted using the plus sign marker. The orange line is plotted using the Asterisk marker. The yellow line is plotted using the diamond marker, and the violet line is plotted using the circle marker. You can change the markers on each line in the plot function according to your requirements.
Q. How do you plot RGB colors in Matlab?
One can specify colors using a vector that gives the RGB triple where in MATLAB, each of the three values are numbers from 0 to 1. Usually RGB colors have values from 0 to 255. You can use those numbers and divide the vector by 255 to use within MATLAB. Thus knowing the MATLAB RGB triples for the colors can be useful.
Q. How do you plot an orange line in Matlab?
To create a thicker line, you can specify the LineWidth as a name-value argument when you call the plot function. In this case, set the LineWidth to 3 . Return the Line object as p so you can set other properties later. Fill the markers with a shade of orange by setting the MarkerFaceColor property on the Line object.
Q. How do you create a graph in MATLAB?
Steps Know a few things about MATLAB. Open MATLAB. Create a new Function file. Set up your Function file. Set up your data. Now set up your graph. Make sure the final line in your function file is “end” and save your file. Execute the function. View the results.
Q. What is plot in MATLAB?
The Plot Function. The plot function in Matlab is used to create a graphical representation of some data. It is often very easy to “see” a trend in data when plotted, and very difficult when just looking at the raw numbers. The plot function usually takes two arguments (but can take one).
Q. What is color plot?
The Color Plot Imaging Spectrocolorimeter bridges the gap between color appearance and material — from incoming material batches to outgoing product shipments — in an elegant, portable unit that fits comfortably in your hand.
