An electric bell is a mechanical or electronic bell that functions by means of an electromagnet. When an electric current is applied, it produces a repetitive buzzing, clanging or ringing sound.

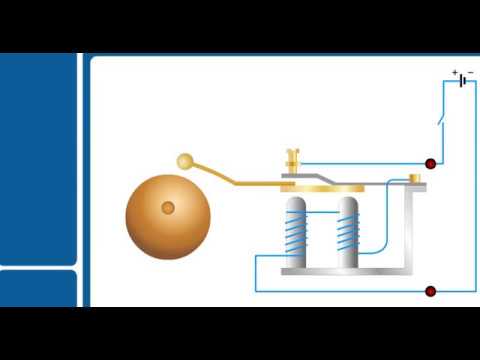

The electromagnet is powered and generates a magnetic field that attracts the iron strip towards it. The striker strikes the gong (bell). When the striking arm strikes the gong, the contact is broken and current stops flowing through the circuit. This causes the electromagnet to lose its magnetic field.

Electric bells use electromagnets. When the electromagnet has pulled the striker towards the gong, the current stops to let the striker move back away from the gong again. The current restarts and the movement of the striker continues. The circuit is constantly made and broken.

heating effect of electric current

Buzzer or electric bell is an electromagnet that automatically connects and disconnects many times per minute. This will cause the vibration of the armature and creation of a buzzing sound.

The buzzer symbol is a semi-circle shape. To add a motor to the circuit, draw a circle with the letter M in the middle. A component called a resistor controls the flow of electricity through the circuit. All circuits generally contain a switch so that the flow of electricity can be turned off, and back on again.

The motor contains an electromagnet that is connected to a shaft. When current flows through the motor, the electromagnet rotates, causing the shaft to rotate as well. The rotating shaft moves other parts of the device. For example, in an electric fan, the rotating shaft turns the blades of the fan.

Electromagnets consist of coils, usually copper, wrapped tightly around a laminated core of ferromagnetic material (soft iron, steel, cobalt).

current: A flow of electrons. electromagnet: A magnet made of an insulated wire coiled around an iron core (or any magnetic material such as iron, steel, nickel, cobalt) with electric current flowing through it to produce magnetism.

There are three main parts required to build an electromagnet: the iron core, copper wire, and an electricity source.

: a core of magnetic material (such as iron) surrounded by a coil of wire through which an electric current is passed to magnetize the core.

Answer: An electromagnet is a coil of insulated wire wound around a piece of a magnetic substance such as soft iron. The magnetic substance acts as a magnet as long as the current flows in the wire.

To create your own electromagnet, you will need the following materials:

• Large iron nail (approximately 3 inches in length)
• Thin coated copper wire.
• Dry cell batteries.
• Electric tape.
• Iron fillings, paper clips and other magnetic items.

Electromagnets are magnets that are generated by electric fields. They have the advantage over regular magnets in that they can be switched on and off. Rights: University of Waikato. A simple electromagnet. A simple electromagnet using everyday materials, constructed as part of a student activity.

Electromagnets are very widely used in electric and electromechanical devices, including:

• Motors and generators.
• Transformers.
• Relays.
• Electric bells and buzzers.
• Loudspeakers and headphones.
• Actuators such as valves.
• Magnetic recording and data storage equipment: tape recorders, VCRs, hard disks.
• MRI machines.

An electromagnet is a temporary magnet which behaves like a magnet when an electric current is passed through the insulated copper wire and loses its magnetism when current is stopped. It has a soft iron piece called the core with an insulated copper wire wound on it.

Hint: An electromagnet is a non-permanent magnet formed when the current passes through a solenoid and a material like the soft iron core gets magnetized. The magnetic properties are present only when the current passes through the insulated copper wire surrounding the solenoid.

Electromagnets are used in all kinds of electric devices, including hard disk drives, speakers, motors, and generators, as well as in scrap yards to pick up heavy scrap metal. They’re even used in MRI machines, which utilize magnets to take photos of your insides!

Draw a diagram showing the polarities of the electromagnet. Solution: Let us take an iron bar AB and wound several turns of insulated copper wire over the bar. Then we connect the ends of the wire to a battery through a switch.
