Q. What does FFT shift do in Matlab?

fftshift (MATLAB Functions) Y = fftshift(X) rearranges the outputs of fft , fft2 , and fftn by moving the zero-frequency component to the center of the array. It is useful for visualizing a Fourier transform with the zero-frequency component in the middle of the spectrum.

Q. How do you phase shift a signal in Matlab?

Use the Variable Phase Shift block to shift the phase of a sine wave to 180 degrees. Use Repeating Sequence Stair block as a Simulink control signal to control the phase of the signal. To see the variation in phase to 180 degrees, first open and run the model.

Q. Why do I need to shift FFT?

The shift is not necessary to perform the fft, but it is handy to visualise the Fourier transform. Whether to use fftshift or not is thus dependent upon whether you want to visualise your transform or not.

Q. What is the difference between Fftshift and Ifftshift?

fftshift simply converts that to [(N/2:N-1) (0:(N/2-1))] . ifftshift simply restores the original indexing. As this is simply reordering samples, it does nothing to the standard deviation.

Q. What is time shifting property of Fourier transform?

Time-shifting property of the Fourier Transform The time-shifting property means that a shift in time corresponds to a phase rotation in the frequency domain: F{x(t−t0)}=exp(−j2πft0)X(f).

Q. What is the frequency shifting of Fourier Transform?

Modulation is an important application of the Fourier transform, as it allows us to change the original frequencies of a message to much higher frequencies, making it possible to transmit the signal over the airwaves. Thus, modulation shifts the frequencies of x(t) to frequencies around ±Ω0.

Q. Which is the Fourier transform function in MATLAB?

For x and y, the indices j and k range from 0 to n – 1. The fft function in MATLAB® uses a fast Fourier transform algorithm to compute the Fourier transform of data.

Q. How is the fftshift function used in Fourier transform?

To better visualize this periodicity, you can use the fftshift function, which performs a zero-centered, circular shift on the transform. In scientific applications, signals are often corrupted with random noise, disguising their frequency components. The Fourier transform can process out random noise and reveal the frequencies.

Q. How to shift the zero frequency of a Fourier transform?

Y = fftshift(X) rearranges a Fourier transform X by shifting the zero-frequency component to the center of the array. If X is a vector, then fftshift swaps the left and right halves of X.

Q. How is the FFT function used in MATLAB?

The fft function in MATLAB® uses a fast Fourier transform algorithm to compute the Fourier transform of data. Consider a sinusoidal signal x that is a function of time t with frequency components of 15 Hz and 20 Hz.

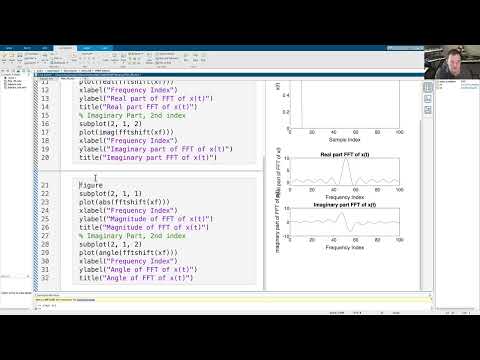

Randomly suggested related videos:
