A clogged pitot tube affects only the airspeed indicator. One or more clogged static ports will affect the airspeed indicator, the vertical speed indicator, and the altimeter. The airspeed indicator will continue to operate, but it won’t be accurate.
Q. What does a pitot static probe measure?
Pitot-Static probes measure total and static pressures and can be used to compute flow velocity. The Pitot-Static probe is most commonly used in applications where only an air speed measurement is desired.
Q. What is pitot static tube used for on airplanes?
Basically, a pitot tube is used in wind tunnel experiments and on airplanes to measure flow speed. It’s a slender tube that has two holes on it. The front hole is placed in the airstream to measure what’s called the stagnation pressure. The side hole measures the static pressure.
Q. What are the 3 pitot-static instruments?

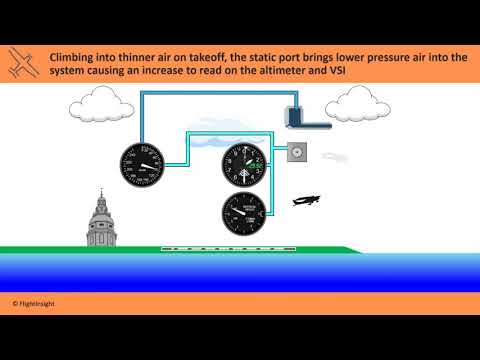

Three instruments are connected to this system: Altimeter: measures altitude. Vertical speed indicator: measures the speed at which an aircraft is ascending or descending (in feet per minute) Air speed indicator: measures the aircraft’s speed through the air.
Q. What are the three gyroscopic instruments?
The most common instruments containing gyroscopes are the turn coordinator, heading indicator, and the attitude indicator.
Q. How many pitot tubes does a 737 have?
five
Q. Are pitot tubes heated?
The pitot tube is an extremely important part of an aircraft and must be heated inflight to function properly. A pitot-static system is a system of pressure-sensitive instruments that is most often used in aviation to determine an aircraft’s airspeed , Mach number , altitude , and altitude trend .
Q. How hot does a pitot tube get?
1 Answer. This page talks about the Pitot probes that operate at temperature range -65°C to +70°C. They are FAA TSO-C16 and Military Approved. It is probably unwise to heat them more during normal operation.
Q. Is pitot heat required for IFR?
“If certification for instrument flight rules or flight in icing conditions is requested, each airspeed system must have a heated pitot tube or an equivalent means of preventing malfunction due to icing.”
Q. What is static pressure in pitot tube?
The static pressure is the operating pressure in the pipe, duct, or the environment, upstream to the pitot tube. It is measured at right angles to the flow direction, preferably in a low turbulence location (Figure 2-9).
Q. Does a pitot tube measure total pressure?
A Pitot tube measures total pressure and static pressure to determine the velocity pressure from which air velocity can be derived. The Pitot tube is inserted into the duct with the tip pointed toward the airflow.
Q. What size CFM fan do I need?
The rule of thumb is that you need at least 1 CFM per square foot of room area. To determine the square footage of your bathroom, multiply the length times the width. For example, if your bathroom is 6 feet wide and 9 feet long, its square footage is 54. Therefore, it should have a fan rated for at least 54 CFM.
Q. Is higher or lower CFM better?
A: Airflow quantifies the amount of air a ceiling fan delivers and is measured in CFM which stands for cubic feet per minute. This means that the higher the CFM, the more efficient the fan, and the more air it moves.
