Q. What is API trim number?
Trim Number Removable/replaceable ,functional parts of the valve that are exposed to the flow medium such as stem,closure member and seating surfaces is termed as trim.(Valve body,bonnet,yoke does not include in trim) The number corresponding to material used in API 600 and API 602 are termed as Trim Numbers.
Q. What is trim on valve?

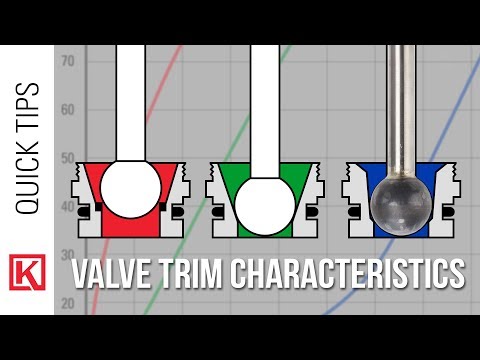

The operating parts of a valve which are normally exposed to the process fluid are referred to as ‘valve trim’. Usually parts like stem, plug, disc, seating surface etc. Valve trim is the physical shape of the plug and seat arrangement. The shape of the valve plug determines the flow characteristics of the valve.
Q. What is trim material?
The valve trim material which refers to the various working parts of a valve such as the stem, wedge, disc, etc., are constructed of many different materials depending upon the pressure rating and service.
Q. What is trim in butterfly valve?
Valve Trim is a name for Valve ‘s Internal Parts that come into contact with Process Fluid and be Worn. The deterioration caused by the use of Valve Trim can be replaced (Replaceable), including Seat, Disc, Stem, Bushing, and others.
Q. How does OS Y valve work?
OS&Y means “outside stem and yoke” or “outside screw and yoke”. OS&Y gate valves operate by opening and closing via a gate, which lowers into or rises out of the valve. Raising the gate allows water to flow through the valve while lowering the gate cuts off the water flowing through the valve.
Q. What are the types of trimming?
Trims or Trimmings: Trims include Sewing Thread, Button, Zipper, Velcro, Label, Shoulder pad, Linings, Interlinings, etc. Trimmings or trims are of two types namely visible trims and invisible trims. Some trims are used for functional purposes and some are for decorative purposes in garments.
Q. What is trim size in control valve?
It is diameter of the port or seat. You will find trim that is the full diameter of the valve or a reduced port size. Check the Cv charts for globe valves.
Q. What is API 598 standard?
The API standard 598: Valve Inspection and Testing, covers the testing and inspection requirements for gate, globe, check, ball, plug and butterfly valves. It has acceptable leakage rates for liquid as well as gas testing. API 598 states for shell and BACK SEAT tests, no visible leakage is permitted.
