Q. What is gable ends on a house?

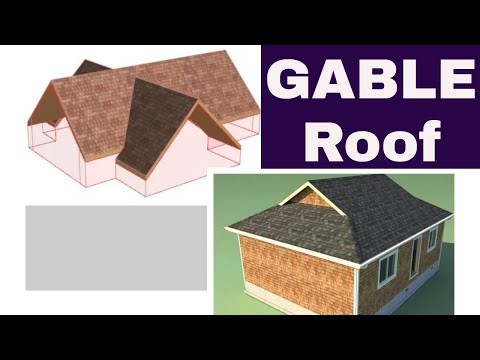

A gable is the generally triangular portion of a wall between the edges of intersecting roof pitches. The term gable wall or gable end more commonly refers to the entire wall, including the gable and the wall below it. Some types of roof do not have a gable (for example hip roofs do not).
Q. What are gable ends on a roof?
A gable is a section of wall located at the end of a pitched roof, between the edges of the intersecting pitches. The term ‘gable wall’ (or ‘gable end’) is used to refer to the gable and the whole wall below it. In classical architecture, a gable was referred to as a pediment.
Q. Are gable ends load bearing?
Side walls are primary load-bearing walls in simple gable-end framing, but hip roofs and complex roof lines depend on more than just the side walls.
Q. What are the ends of a roof called?
Roof Ridge: The roof ridge, or ridge of a roof is the horizontal line running the length of the roof where the two roof planes meet. This intersection creates the highest point on a roof, sometimes referred to as the peak. Hip and ridge shingles are specifically designed for this part of a roof.
Q. Do you need headers on gable ends?
You do not need a header in a gable wall unless there is a point load supporting the ridge beam. But there are two other openings in that gable wall where he was legally required to add a header to the framing.
Q. Are exterior end walls load bearing?
Essentially, any exterior wall that rests on the foundation is considered load bearing. Locate the beams. If the beam spans from the foundation through the ceiling above it, then the wall is load-bearing and shouldn’t be removed. Look for joists.
Q. What is the gable end of a shed?
Gable. The Gable is the pointy bit on an Apex Shed. More specifically I’ll say, Gable end – which means I’m talking about the whole panel, not just the peak (the pointy bit) and it’s usually where the door goes! But only if you want it to.
Q. What is trim on a house?
Trim is the material used to encase windows and doors, among other features, on a home’s exterior. Fascia is a horizontal or angled board that encloses the edge or face of the projecting eaves.
Q. Where does gable trim go?
It is designed to run from the end of the roof panels to the center of the peak. Place the gable trim flush with the end of your roof panels. That means if you overhung your roof panels past the sidewall, the gable trim goes to the end of the roof panel.
Q. What is a gable end on a building?
Definition of a Gable End in Construction. Gable end is the end of a pitched roof. For example, a standard pitched roof has the sides of the roof that are located at the bottom of the pitched portion of the roof. These sides are normally called the eaves of the roof.
Q. How to make a gable end on my roof?
Part 1 of 3: Framing the Gable Ends Download Article Nail 2 boards onto your walls as top plates. Use 8-penny nails to attach the first 2 in × 4 in (5.1 cm × 10.2 cm) board to the Add ceiling joists every 24 in (61 cm) on your top plates. Ceiling joists span between parallel walls for added structural support. Determine the pitch you want for your roof. Cut your rafters to fit your slope.
Q. What is the opposite of “gable end”?
The opposite or inverted form of a gable roof is a V-roof or butterfly roof Front-gabled and side-gabled. Front-gabled buildings in Tübingen. Side-gabled buildings The gable end roof is a poor design for hurricane or tornado-prone regions, as it easily peels off in strong winds. The part of the roof that overhangs the triangular wall very
