Q. What is NIC Teaming in Windows Server 2012 R2?
Applies To: Windows Server 2012 R2. NIC Teaming, also known as load balancing and failover (LBFO), allows multiple network adapters on a computer to be placed into a team for the following purposes: Bandwidth aggregation. Traffic failover to prevent connectivity loss in the event of a network component failure.
Q. How do I enable NIC Teaming?
To create a NIC Team:
- In Server Manager, click Local Server.
- In the Properties pane locate NIC Teaming, and then click the link Disabled to the right.
- In Adapters and Interfaces, select the network adapters that you want to add to a NIC Team.
- Click TASKS, and then click Add to New Team.
Q. What is NIC Teaming in Windows Server?
NIC Teaming allows you to group between one and 32 physical Ethernet network adapters into one or more software-based virtual network adapters. Since Windows Server 2016 supports up to 32 team interfaces per team, there are a variety of algorithms that distribute outbound traffic (load) between the NICs.
Q. How do I find teaming in Windows Server 2012?

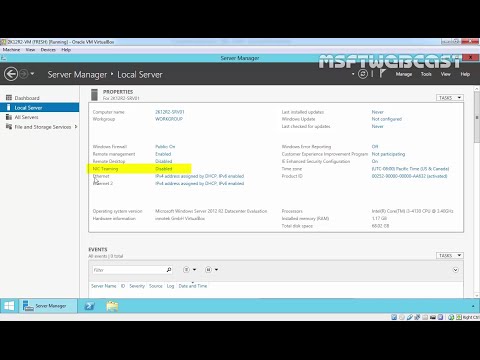

To do so, open the Server Manager and click on Local Server. Next, locate the NIC Teaming option in the Properties section and then check to see if NIC Teaming is enabled or disabled, as shown in Figure A.
Q. What is the benefit of NIC Teaming?
The major benefits of NIC teaming are load balancing (redistributing traffic over networks) and failover (ensuring network continuity in the event of system hardware failure) without the need for multiple physical connections. Essentially, NIC teaming is a strategic plan that can increase uptime.
Q. Does NIC Teaming require switch configuration?
Requirements. Using NIC teaming within a VM includes these requirements to be a “supported configuration”: You must be using multiple adapters in the VM. The VM NIC Team mode must be set to Switch Independent and the load balancing mode must be set to *Address Hash.
Q. Can you team NICs in Windows 10?
If you run a busy Windows 10 machine at home, such as a lab or Plex server and have two NICs you may want to team them to get more bandwidth and stop applications from choking. Solution: You will need at least one Intel NIC for this to work.
Q. Does NIC teaming improve performance?
NIC Teaming, also known in the Microsoft world as Load Balancing/Failover (LBFO), allows you to install additional physical Ethernet network adapters (NICs) into your server and “team” or combine them together to make one virtual NIC that provides better performance and fault tolerance.
Q. Does NIC teaming require switch configuration?
Q. Does NIC Teaming increase speed?
NIC teaming does not increase bandwidth.
Q. How can you remove AD DS from a Windows Server 2012 r2?
How to remove active directory server manually?
- Go to Server manager > Tools > Active Directory Sites and Services.
- Expand the Sites and go to the server which need to remove.
- Right click and click Delete.
- In next window click yes to confirm.
Q. What does Windows Server 2012 R2 NIC teaming mean?
Applies To: Windows Server 2012 R2 NIC Teaming, also known as load balancing and failover (LBFO), allows multiple network adapters on a computer to be placed into a team for the following purposes: Traffic failover to prevent connectivity loss in the event of a network component failure
Q. How do I add a NIC team to my server?
In Server Manager, click Local Server. In the Properties pane locate NIC Teaming, and then click the link Disabled to the right. The NIC Teaming dialog box opens. In Adapters and Interfaces, select the network adapters that you want to add to a NIC Team. Click TASKS, and then click Add to New Team.
Q. What kind of network adapter do I need for NIC teaming?
First, you will need access to either Windows Server 2012, 2012 R2, 2016 or 2019. You will also need at least two network adapters available. And finally, you’ll need to use the Microsoft Network Adapter Multiplexor to initiate NIC teaming. When you commence NIC Teaming, you’ll need to select what Teaming Mode to use.
Q. What are the different modes of NIC teaming?
NIC Teaming Modes 1 Switch Independent Mode. Switch Independent Mode allows you to connect users to multiple, non-stack switches. 2 Static Mode. Static Mode teaming requires you to manually configure the ports on the switch that connects with the NIC team into a Link Aggregation Group (LAG). 3 LACP Mode.
