A single fixed pulley, like the one in Figure 1(a), has an ideal mechanical advantage of 1 since the effort force (120 N) is equal to the load force (120 N). However, in the single movable pulley (Figure 1(b)), half of the load is supported by the rope attached to the ceiling.
Q. Where are pulleys used today?
Many types of exercise equipment use pulleys in order to function. Construction pulleys are used in order to lift and place heavy materials. Curtains at a theatre are moved using pulley systems that pull the curtains apart. Blinds on windows operate using a pulley system to move the blinds up and down.
Table of Contents
- Q. Where are pulleys used today?
- Q. What is similar to a pulley?
- Q. What is the main advantage of a pulley?
- Q. What is the mechanical advantage of a moveable pulley?
- Q. What is the advantage of using a single fixed and movable pulley?
- Q. Why is single movable pulley is considered superior to single fixed pulley?
- Q. What is a movable pulley used for?
- Q. Does a fixed pulley reduce effort?
- Q. What is the pulley ratio?
- Q. How does changing pulley size affect speed?
- Q. How do you find the pulley gear ratio?
- Q. Does a smaller drive pulley increase speed?
- Q. Does the diameter of a pulley matter?
- Q. Do belt drives need continuous lubrication?
- Q. Where is Vbelt used?
Q. What is similar to a pulley?
A pulley is similar to another simple machine, the lever. A lever has a fulcrum, or fixed point, around which a bar turns.
Q. What is the main advantage of a pulley?
The main advantage in the use of pulleys is that the effort becomes less as compared to the normal lifting of the weights. In other words, it reduces the amount of actual force required to lift heavy objects. It also changes the direction of the force applied.
Q. What is the mechanical advantage of a moveable pulley?
The mechanical advantage of a moveable pulley is 2. This means that a moveable pulley will halve the required force needed to move any object attached to it. This occurs because in a moveable pulley one end of the rope is stationary, which means it absorbs some of the force needed to move the object.
Q. What is the advantage of using a single fixed and movable pulley?

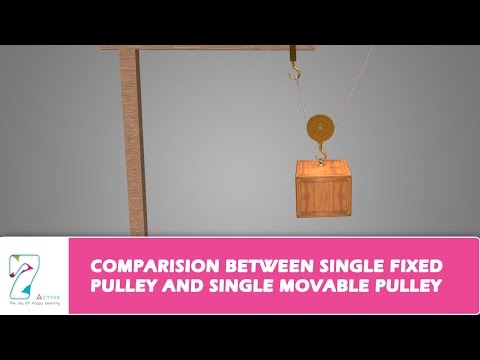

Single fixed pulley | Single movable pulley |
---|---|
1. It is fixed to a rigid support. | 1. It is not fixed to a rigid support. |
2. Its mechanical advantage is one. | 2. Its mechanical advantage is two. |
3. Its velocity ratio is one. | 3. Its velocity ratio is two. |
Q. Why is single movable pulley is considered superior to single fixed pulley?
Single movable pulley considered more superior than single fixed pulley because its mechanical advantage is more than 1. Hope this information will clear your doubts about topic.
Q. What is a movable pulley used for?
The movable pulley is used to reduce the amount of input force to lift a load. The most popular system that uses this pulley would be a well. Unlike the fixed pulley, the movable pulley is attached to the load, and is lifted by pulling up on the rope, making it twice as easier to lift a heavy object.
Q. Does a fixed pulley reduce effort?
Watch This short introduction on Pulleys. The fixed pulley is a pulley that is attached to a structure and does not move. It’s main purpose is to change the direction of the force needed to lift a load. The effort force needed does not change.
Q. What is the pulley ratio?
To find the total ratio, use the pulley ratio formula: Ratio = (Radius of Driven Pulley) / (Radius of Drive Pulley) Example: A handcrank is attached to a drive pulley of 2 inches in radius. The belt runs from the drive pulley to a driven pulley.
Q. How does changing pulley size affect speed?
By changing the diameter of the pulley wheels, speed can be changed. A smaller pulley turning a larger pulley results in the larger one moving more slowly but with more shaft power.
Q. How do you find the pulley gear ratio?
The number of teeth on a gear or sprocket is exactly proportional to the pitch diameter. Therefore, the gear ratio equals the number of teeth on the gear divided by the number of teeth on the driver gear.
Q. Does a smaller drive pulley increase speed?
If a smaller pulley turns a larger one, the larger one will turn slower, but with more power available at the shaft. If a bigger pulley turns a smaller one, the smaller one will turn much faster than the bigger one but with less power available at the shaft.
Q. Does the diameter of a pulley matter?
What effect does pulley diameter have on efficiency? A larger diameter pulley wheel (aka sheave) is technically more efficient than a smaller diameter pulley. But it’s a trade off: a larger pulley has increased bulk, weight and cost.
Q. Do belt drives need continuous lubrication?
Synchronous belt drives require no lubrication, are clean running, are maintenance free, and once installed properly, do not require retensioning.
Q. Where is Vbelt used?
V-Belts are the most common type of drive belt used for power transmission. Their primary function is to transmit power from a primary source, like a motor, to a secondary driven unit. They provide the best combination of traction, speed transfer, load distribution, and extended service life.
