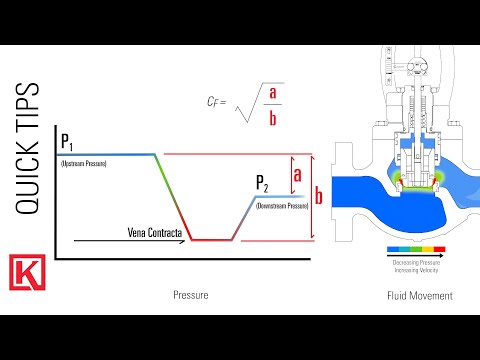

The valve recovery coefficient is a dimensionless, numerical factor that represents a valve’s flow vs. liquid pressure curve, and thus the valve’s tendency to cavitate.
Q. What is a pressure recovery coefficient?
The performance of a diffuser is determined by a pressure recovery coefficient CPR. This is given as the increase in pressure across the diffuser divided by the dynamic pressure at the inlet.
Q. What does it mean by the pressure recovery?
An increase in fluid velocity leads to a drop in local pressure. As fluid velocity slows down, local pressure increases; i.e. there is pressure recovery. If decrease in fluid velocity is accompanied by an increase in turbulent flow, there will be an increase in heat loss at the expense of pressure recovery.
Q. What is CF in fluids?
Cystic fibrosis (CF) is an inherited disorder that causes severe damage to the lungs, digestive system and other organs in the body. Cystic fibrosis affects the cells that produce mucus, sweat and digestive juices. These secreted fluids are normally thin and slippery.
Q. How do you calculate pressure recovery?
The pressure recovery factor is proportional to the square root of the overall pressure drop (P1-P2), so that the valve with the lowest recovery factor will have the lowest over pressure drop. The correct answer is B, butterfly.
Q. What is pressure recovery aerodynamics?
Aerodynamicists characterize the inlet’s pressure performance by the inlet total pressure recovery, which measures the amount of the free stream flow conditions that are “recovered”.
Q. What is lift and drag coefficient?
The lift to drag ratio (L/D) is the amount of lift generated by a wing or airfoil compared to its drag. The maximum lift/drag ratio occurs at one specific CL (Lift Coefficient) and AOA (Angle of Attack (AOA)). If the aircraft is operated in steady flight at Lift/Drag maximum ratio, the total drag is at a minimum.
Q. What is the purpose of pressure coefficient?
Consequently, an engineering model can be tested in a wind tunnel or water tunnel, pressure coefficients can be determined at critical locations around the model, and these pressure coefficients can be used with confidence to predict the fluid pressure at those critical locations around a full-size aircraft or boat.
Q. What does the pressure coefficient represent?
The ratio of pressure forces to inertial forces The pressure coefficient is important in most fluid flow applications.
Q. What is a high recovery valve?
HIgh pressure-recovery valves are kind of ctrl valves designed to mitigate/prevent cavitation effects: they are designed to minimize pressure loss by streamlining the flow passage.
Q. When do you use a pressure recovery factor?
This is expressed as Pressure Recovery Factor (often abbreviated as “PRF” or “F L ”) that is used to determine the true pressure drop across the valve seat, and to determine if cavitation is likely to occur.
Q. What is the pressure recovery factor of a globe valve?
A globe valve has a pressure recovery factor of 0.83; a butterfly valve has a pressure recovery of 0.61; a ball valve has a pressure recovery factor of 0.63; and an eccentric plug valve a pressure recovery factor of 0.79. Which valve will have the least overall pressure drop?
Q. What does CV stand for in pressure recovery factory?
Read on to understand pressure recovery factory. Cv is defined as the number of gallons per minute of water that will pass through a given flow restriction with a pressure drop of 1 psi and is a capacity index useful for rapidly and accurately estimating the required size of any fully opened valve in a flow system.
Q. What is the sizing coefficient for a control valve?
The valve sizing coefficient most commonly used as ameasure of the capacity of the body and trim of a controlvalve is Cv. One Cvis defined as one U.S. gallon perminute of 60 degree Fahrenheit water that flows througha valve with a one psi pressure drop. The generalEquation for C is as
