Q. Which is better OCXO or TCXO?
TCXOs use an electronic circuit to compensate for the frequency variation as a result of temperature, the electronic circuits are much smaller than the oven, thus TCXO’s are usually much smaller in size than OCXO’s….Editorial Team – everything RF.
| TCXO | OCXO | |
|---|---|---|
| Size | Smaller | Larger |
| Power Required | Low | High |
| Cost | Lower | Higher |
Q. What is TCXO crystal?
A TCXO (Temperature compensated crystal oscillator) is a crystal oscillator with a temperature-sensitive reactance circuit in its oscillation loop to compensate the frequency-temperature characteristics inherent to the crystal unit. Epson’s are classified into two types.
Q. Which is the best crystal oscillator?
Let’s take a look at the top 10 Crystal Oscillators on SnapEDA!
- #9- FOXSDLF/080-20 by Fox Electronics.
- #8- ABM3-8.000MHZ-D2Y-T by Abracon Corporation.
- #7- TSX-3225 16.0000MF18X-AC3 by Epson.
- #5- CSTCE8M00G55-R0 by Murata.
- #3- FOXSDLF/160-20 by Fox Electronics.
Q. What is Tcxo stands for?
Temperature-Compensated Crystal Oscillator
TCXO Stands for Temperature-Compensated Crystal Oscillator which are used to provide a higher level of temperature stability than the standard crystal oscillator (XO).
Q. What is ppm for TCXO?
Temperature compensated crystal oscillators (TCXOs) are used for frequency reference in systems that require a frequency stability of 10 ppm or better, which typically cannot be achieved by a standard XO (crystal oscillator) or VCXO (voltage controlled crystal oscillator).
Q. How do I choose a crystal oscillator?
Five things to consider when choosing a crystal oscillator
- Output Frequency. The most fundamental attribute of any oscillator is the frequency that it will produce.
- Frequency Stability and Temperature Range. The required frequency stability is determined from the system requirements.
Q. What is TCXO module?
The letters TCXO stand for Temperature Compensated Xtal Oscillator – Xtal is short from crystal and implies a quartz crystal resonator. The TCXO module is able to provide considerably improved performance over that of a standard crystal oscillator, especially in terms of frequency stability over a temperature range.
Q. Which oscillator has highest frequency stability Mcq?
9. Which of the following oscillator is will give the most stable output oscillation frequency? Explanation: Crystal oscillator gives the most stable oscillation.
Q. Do I need TCXO?
TCXOs are necessary when a level of temperature stability is required that cannot be reached by a standard XO (crystal oscillator) or VCXO (voltage controlled crystal oscillator). Temperature stability is a measure of how much the oscillators frequency varies over temperature and is defined in two ways.
Q. What is OCXO oscillator?
An OCXO is an “Oven Controlled Crystal Oscillator”, which is a kind of crystal oscillator that has higher frequency stability. OCXOs work by heating the crystal beyond a temperature which it would normally encounter, thus helping to maintain the temperature of the crystal at a constant level.
Q. What are the advantages of crystal oscillator?
The Advantages of a Crystal Oscillator
- Stability. Stability is one of the most important requirements of any oscillator.
- High Q. The Q factor or quality factor describes how ‘underdamped’ oscillators are.
- Frequency Customization and Range.
- Low Phase Noise.
- A Crystal Oscillator Is Compact and Inexpensive.
Q. Why do crystal oscillators need capacitors?
The capacitors are there to resonate with the crystal inductance and cause the crystal to oscillate on its fundamental parallel-resonant mode. The difference between a crystal with two capacitors compared to a ceramic resonator is that the capacitors happen to be integrated into the ceramic resonator.
Q. What’s the difference between a TCXO and an OCXO?

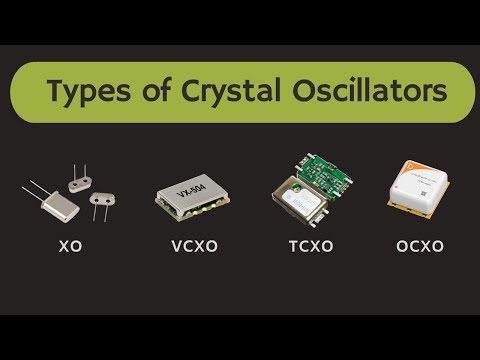

Two popular versions are the temperature-compensated crystal oscillator (TCXO — “XO” is the old acronym for “crystal oscillator”) and oven-controlled crystal oscillator (OCXO).
Q. When to adjust the frequency of a TCXO?
Because TCXOs have aging rates of 0.50 ppm/year to 2.0 ppm/year, there is a need to adjust the frequency at +25°C to offset aging effects. Most TCXOs have mechanical frequency adjust similar to clock oscillators. The typical adjust range is ±5 ppm. Typical deviation ranges: ±10 ppm to as much as ±2000 ppm.
Q. What kind of crystal is used in an OCXO?
To ensure that that it is optimized for a higher internal operating temperature, the crystal used in an OCXO is typically made from a special cut (AT- or SC-cut). The “oven” that is used is a thermally-insulated enclosure that contains the crystal as well as the oscillator assembly, buffering circuitry and supply voltage regulation.
Q. What are the building blocks of a TCXO?
The basic building block for a TCXO is a VCXO with approximately ±50 ppm deviation range and a temperature sensitive network. This temperature sensitive network (temperature compensation circuit) applies a voltage to the varactor diode that corrects the frequency of the VCXO at any temperature within the operating temperature range.
