If light bulbs are connected in parallel to a voltage source, the brightness of the individual bulbs remains more-or-less constant as more and more bulbs are added to the “ladder”. The current increases as more bulbs are added to the circuit and the overall resistance decreases.
Q. How do you calculate total resistance?
If you know the total current and the voltage across the whole circuit, you can find the total resistance using Ohm’s Law: R = V / I. For example, a parallel circuit has a voltage of 9 volts and total current of 3 amps. The total resistance RT = 9 volts / 3 amps = 3 Ω.
Q. What happens to the current in a series circuit if the resistance is doubled?
if you increase the resistance (the opposition to current flow) in a circuit then the current flow will decrease in direct proportion, eg if the resistance in a circuit doubles then current flow will halve.
Q. When two electric bulbs of 40W and 60w are connected in parallel with a source then the?
When the two bulbs are connected in parallel, they will act just as they would when they are connected individually/separately, therefore showing same characteristics in both case. As 60 W bulb is brighter, it will shne more brightly than than the 40W bulb.
Q. Which bulbs are brighter in series or parallel?
Bulbs in parallel are brighter than bulbs in series. In a parallel circuit the voltage for each bulb is the same as the voltage in the circuit.
Q. Why bulbs in parallel are brighter than in series?
When the bulbs are in parallel, each bulb sees the full voltage V so P=V2R. Since a bulb glows brighter when it gets more power the ones in parallel will glow brighter. See, the parallel combination of resistors reduces the effective resistance of the circuit. Hence it glows brighter.
Q. Why are bulbs in parallel are brighter than bulbs in series?
Current is common in a series circuit. In a parallel circuit, voltage is common so each lamp in the circuit has the same voltage applied, thus the lamps in parallel are brighter than those in series.
Q. Why do bulbs in series get dimmer?

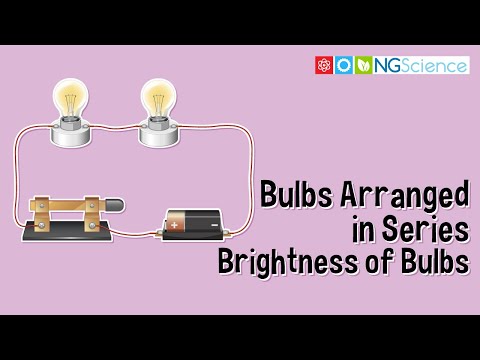

Why bulbs in series are dimmer The bulbs are dim for two reasons: The current going through them is smaller because two bulbs in series have a higher resistance than a single bulb. Each charge only gives up some of its energy in each bulb, i.e. the p.d. across each bulb is smaller.
Q. Do batteries in parallel last longer?
In a parallel circuit every load receives the same voltage. When batteries are hooked up in parallel, the voltage remains the same, but the power (or available current) is increased. This means that the batteries would last longer.
Q. When two batteries are connected in parallel it should be ensured that?
When two batteries are connected in parallel, it should be ensured that. they have same e.m.f. they have same e.m.f.
