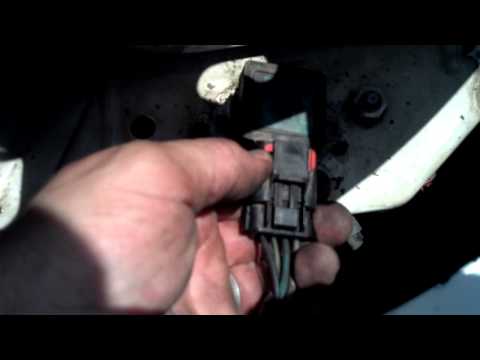

The radiator fan relay is located below the left front headlamp module Radiator Fan Relay The headlamp module must be removed to access the relay.
Q. Where is the radiator cooling fan relay located?
The cooling fan control module in your vehicle is located at the front left of the engine compartment next to the radiator.
Table of Contents
- Q. Where is the radiator cooling fan relay located?
- Q. Where is the radiator fan fuse located?
- Q. What is code po480?
- Q. How can you tell if a radiator fan fuse is blown?
- Q. How long does a radiator fan take to turn on?
- Q. Does a radiator fan run all the time?
- Q. Why is my radiator fan running all the time?
- Q. Where is the fan relay located on a 2004 Jeep Grand Cherokee?
- Q. How do you take the fan shroud off a 1999 Jeep Grand Cherokee?
- Q. How do you remove the fan clutch on a Jeep Grand Cherokee?
- Q. How do I know if my clutch fan is bad on my Jeep?
- Q. How do I know if my TJ fan clutch is bad?
- Q. How do you check a clutch fan on a Jeep?
- Q. What temperature does a fan clutch engage?
- Q. What does a bad clutch fan sound like?
- Q. What are the signs of a bad clutch fan?
Q. Where is the radiator fan fuse located?
Where is the fuse for radiator fan? The cooling fan relay is normally located in either the underhood fuse and relay center or mounted to the electric fan assembly behind the radiator.
Q. What is code po480?
Diagnostic Trouble Code P0480 is defined as Cooling Fan 1 Control Circuit Malfunction. It indicates that PCM has detected an incorrect amount of voltage (high or low) in the electric cooling fan control circuit.
Q. How can you tell if a radiator fan fuse is blown?
You can tell if the fuse is blown because the fan will not even attempt to turn or make any noise. If you ‘fling’ the blades with your hand, still nothing (sometimes that starts them when they are sticking). But if the fan makes a noise like it is trying to start then it isnt the fuse.
Q. How long does a radiator fan take to turn on?
This typically takes about 15-20 minutes for the engine to reach the right temperature for the radiator fan to turn on in older cars. If there’s a problem with the engine’s temperature, then this can damage the radiator.
Q. Does a radiator fan run all the time?
An electric fan SHOULD NOT run all the time. The fan turning on is normal and a consequence of the hot coolant, not a cause. The coolant may not be moving due to a water pump problem, blockage in the radiator or hoses, or a stuck valve, i.e., the “thermostat” in the coolant line.
Q. Why is my radiator fan running all the time?
It is possible that this problem of your car’s fans constantly running is some sort of mechanical or electrical error from a poor sensor or other component. There are temperature sensors and some cars have separate sensors for the gauge itself. The fan can be shut off when the engine temperature warrants.
Q. Where is the fan relay located on a 2004 Jeep Grand Cherokee?
There are two fan relays (high speed and low speed) on the 2004 Jeep Grand Cherokee in the PDC (power distribution center) under the hood on the passenger side.
Q. How do you take the fan shroud off a 1999 Jeep Grand Cherokee?
REMOVAL
- Gently lay fan into shroud.
- Disconnect the electrical connector for the electric fan, then disconnect connector from shroud.
- Disconnect transmission cooler line from retaining clip on fan shroud.
- Remove the mounting bolts form the shroud.
- Remove the radiator mounting bolts.
Q. How do you remove the fan clutch on a Jeep Grand Cherokee?
Locate the clutch, which is bolted to the back of the fan. Remove the four clutch mounting bolts on the back of the clutch by turning them counterclockwise with the wrench. Remove the fan and clutch assembly from the engine compartment.
Q. How do I know if my clutch fan is bad on my Jeep?
To confirm the diagnosis, start with this simple test: Spin the fan as hard as you can on an engine that has not been started that day. If the fan rotates more than five times, you can bet the clutch is bad. You should feel some resistance and the fan may spin up to three times, depending on the ambient temperature.
Q. How do I know if my TJ fan clutch is bad?
If the fan cannot be rotated by hand or if there is a rough grating feel as the fan is turned, the clutch should be replaced.
Q. How do you check a clutch fan on a Jeep?
To test the fan clutch, get the engine to operating temp, shut it off, then try to spin the fan as hard as you can, if it can make a full revolution or more, it is time to replace it.
Q. What temperature does a fan clutch engage?
about 170°F
Q. What does a bad clutch fan sound like?
Usually a bad fan clutch will sound like the fan blades rubbing against the radiator type noise. Or a rattle. A faulty fan clutch that leaves the fan permanently engaged will not only cause a noisy engine, but can also cause a decrease in performance.
Q. What are the signs of a bad clutch fan?
Usually a bad or failing fan clutch will produce a few symptoms that can alert the driver of a potential issue.
- Vehicle overheating.
- Excessively loud cooling fans.
- Decrease in power, acceleration, and fuel efficiency.
